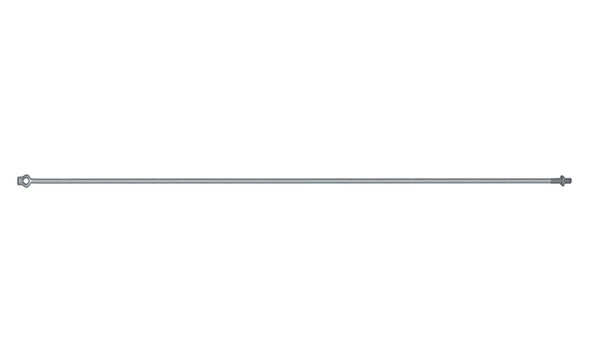

H.D.G. Guy Anchor Rod
Guy anchor is also called guy wire anchor rod, guy anchor rod or
anchor rod. You need to buy the guy anchors when you are planning
to attach guy wires on your overhead power line. This power line
hardware creates a connection between the guy wire and the ground.
One of the key characteristics of a good guy anchor is the tensile
strength. It should be strong enough to sustain the tensional force
that is exerted diagonally by the guy wire.
The strength of the guy anchor is attributed to the galvanized
steel material. The good thing about steel material for the guy
anchor is it does not give in easily to the external forces. It can
support the tensional and physical forces that are being exerted by
the guy wire.
The galvanized finishing gives guy anchor extra protection from
elements It ensures that the physical structure of the guy anchor
is not affected by issues such as weather conditions, heat, and
chemicals. In short, your guy anchor will serve you for ages.
Guy anchors come in different designs and sizes. While buying a guy
anchor, you need to know the exact length that will be suitable for
your application. Another measurement parameter that you should
know is the shaft diameter of the guy anchor.
Guy anchors have round holes which have different diameters. Also,
the number of holes on one guy anchor may be different from the
number of holes in the other anchor rod.
Some guy anchors have a top plate where you can attach the guy
cable. You can also request customized solutions that will match
your needs.
If you want other information such as the price of customed guy
anchor, simply contact us.
| Shaft Diameter Inch | Length Feet | Helix Diameter Inch | Thimble Eye | Twin Eye | Triple Eye |
| Approx. Ship wt.Kg. | Approx. Ship wt.Kg. | Approx. Ship wt.Kg. |
| /100 | /100 | /100 |
|
| 3/4 | 6 | 6 | 474 | 464 | – |
| 7 | 530 | 540 | – |
| 8 | 588 | 598 | – |
| 6 | 8 | 543 | 552 | 568 |
| 7 | 598 | 609 | 632 |
| 8 | 657 | 665 | 685 |
| 1 | 7 | 8 | 918 | 1012 | – |
| 8 | 1091 | 1129 | – |
| 9 | 1212 | 1245 | – |
| 10 | 1324 | 1362 | – |
Length
Feet | Helix Dia. Inch | Shaft Dia. Inch | Approximately Ship Weight kg./100 Pcs |
| 6 | 6 | 3/4 | 474 |
| 7 | 6 | 3/4 | 530 |
| 8 | 6 | 3/4 | 588 |
| 6 | 8 | 3/4 | 543 |
| 7 | 8 | 3/4 | 598 |
| 8 | 8 | 3/4 | 657 |
| 7 | 8 | 1 | 918 |
| 8 | 8 | 1 | 1,091.00 |
| 9 | 8 | 1 | 1,212.00 |
| 10 | 8 | 1 | 1,324.00 |
