| Brand Name : | LKY |
| Model Number : | Dead End Tee Guy Attachment |
| Certification : | CE, ISO |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 200 tons per month |
| Delivery Time : | 60 days |
Available with either flat mounting base (DET series) or curved
mounting base (DETR series)
Used for high strength, pole connection interface to clevises,
thimble clevises, insulators, shackles and other deadend
attachments.
For use on wood, steel, concrete or fiberglass poles Material:
Steel - Hot Dip Galvanized

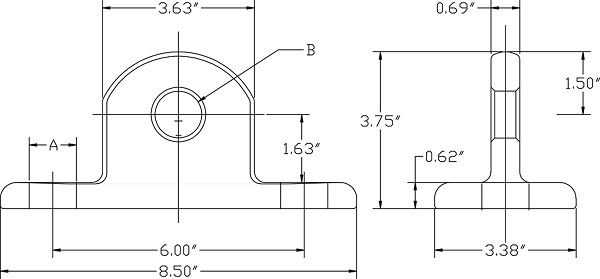

| A (in) | B (in) | Ultimate Strength | Weight/100 (lbs) |
| 15/16 | 1-1/4 | 60000 | 640 |
| 1-1/16 | 1-1/8 | 60000 | 640 |

| A (in) | B (in) | Ultimate Strength | Weight/100 (lbs) |
| 13/16 | 15/16 | 60000 | 690 |
| 1-1/16 | 1-1/8 | 60000 | 680 |
| 1-3/16 | 1-1/8 | 60000 | 670 |
